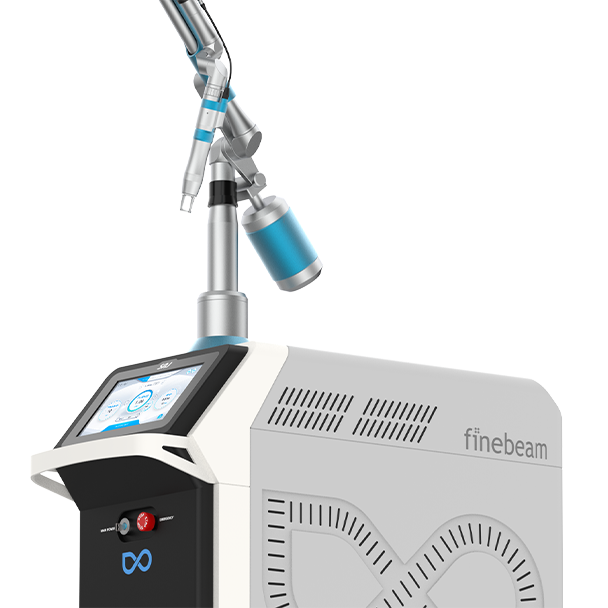

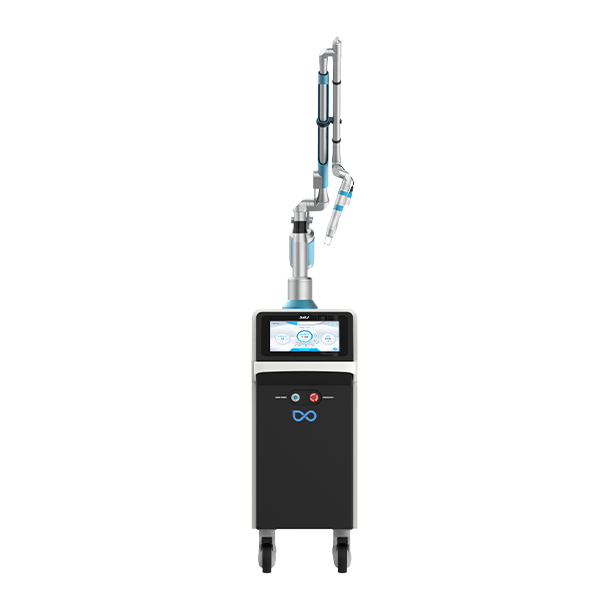

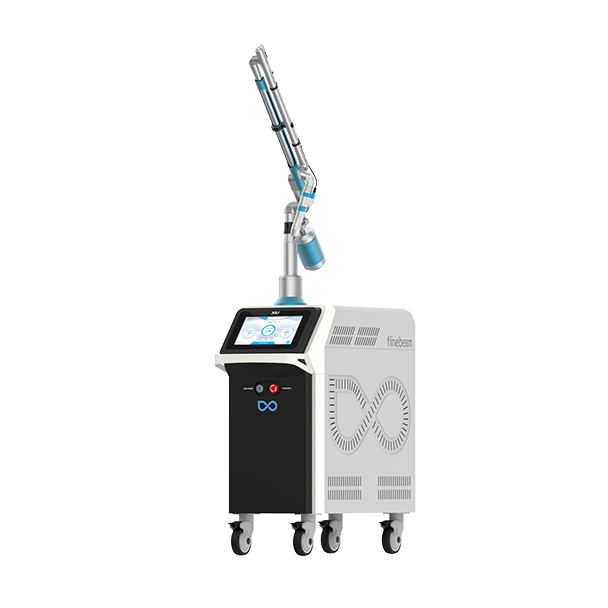

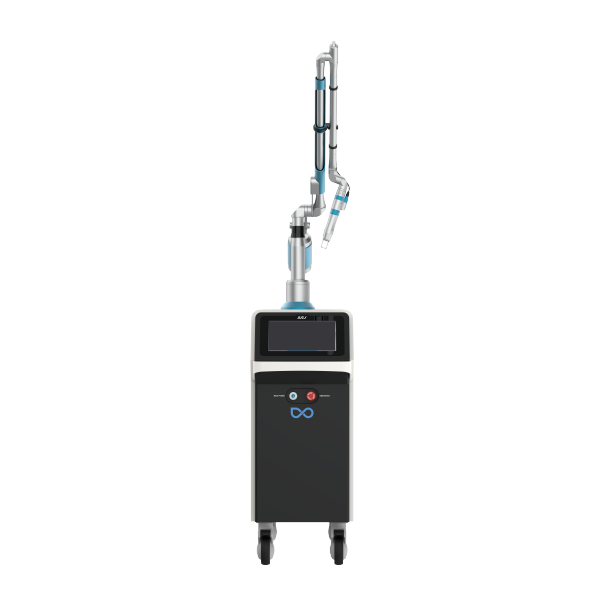

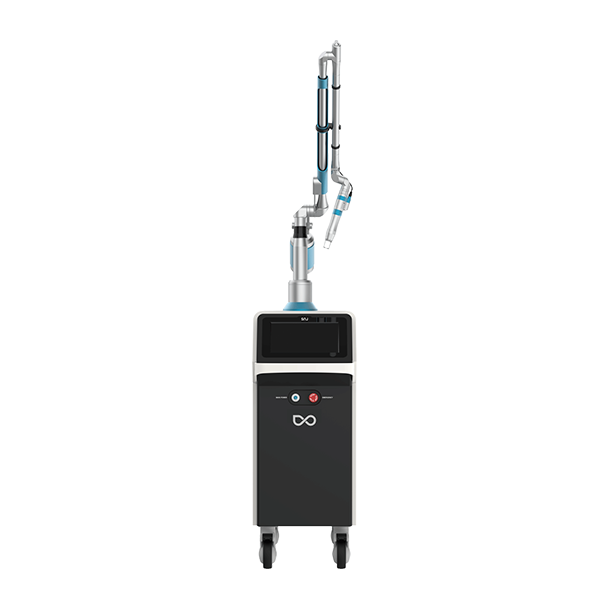

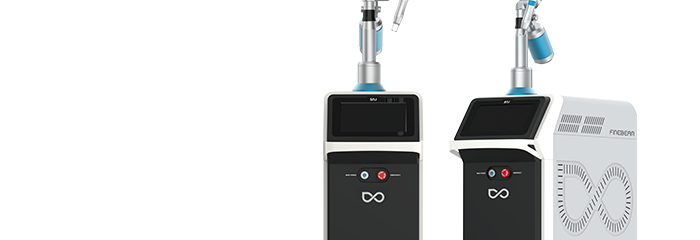

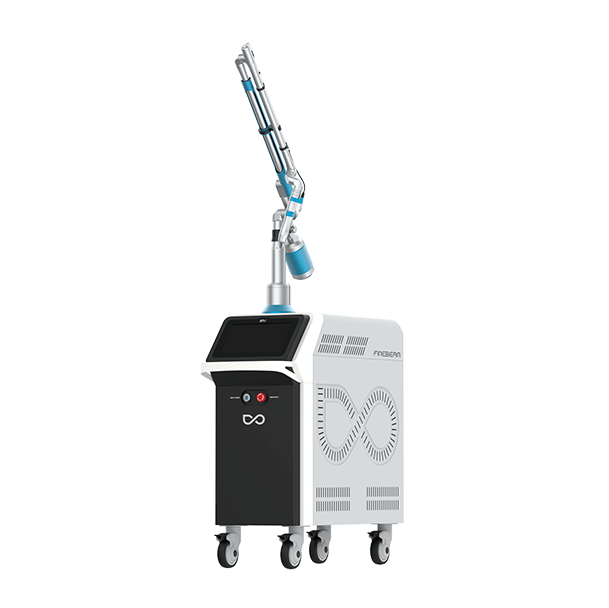

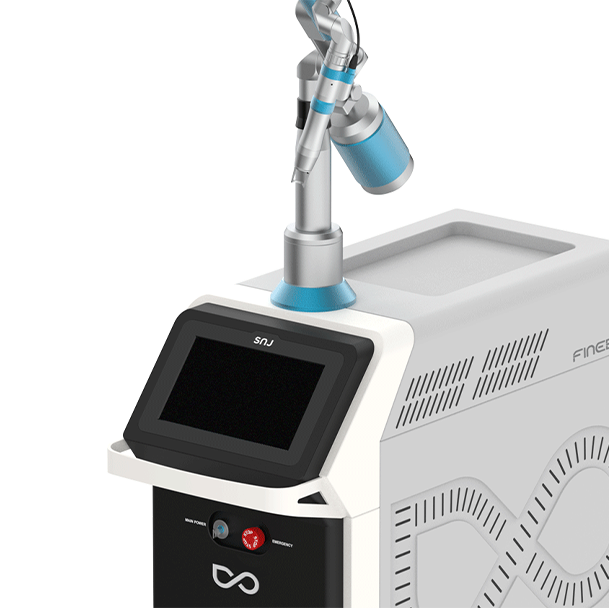

1064 · 532 Q-Switched & Long-Pulse Nd:YAG Laser

· Powerful MLA care for skin texture improving
· Stable energy delivery and high durability
· Exceptionally high power PTP for effective dermal melanin, tattoo ink breaking
· True Genesis with 1064nm long-pulse (60J, 0.3 ~ 300ms)

Competitive Q-Switched and Long-Pulsed in One Platform

Offers the outstanding versatility of Q-Switched and Long-Pulsed laser
indications. Stable energy delivery and high durability are assured via the
advanced dual-chamber resonator technology
Catalog RequestProduct Video

Mode

Select the mode upon the indications

Q-Switched

Long-Pulsed

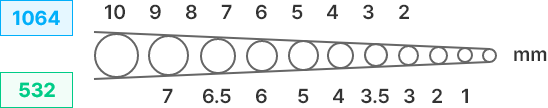

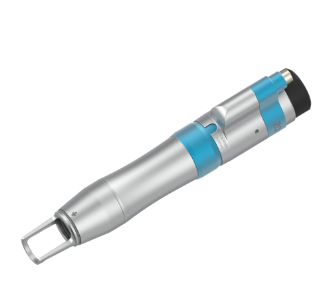

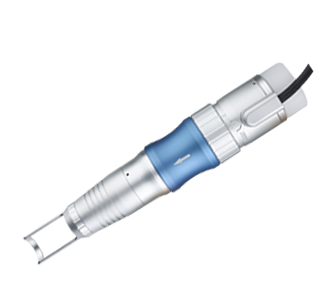

ZOOM Collimation

Basic

General indications

(Toning, Freckle, Age Spot, Carbon Peeling, Tattoo Removal, Hair Removal etc.)

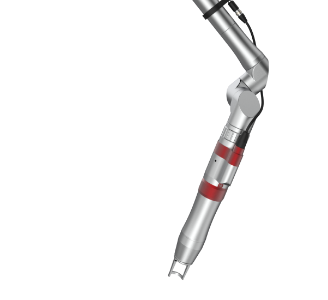

ZOOM MLA

Fractional

Option

Elasticity related care for skin texture

(Acne Scar, Pore Tightening, Skin Laxity, Fine Wrinkle etc.)

DOE

Fractional

Option

Pigmentation lesions for dermis without side effect

(Seborrheic Dermatitis, Toning for thermal sensitive skin, Pigment easy rebound skin etc.)

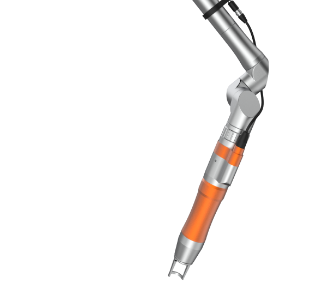

595nm Gold

Fractional

Option

Vascular Melasma, Rosacea, Purple · Sky Blue Tattoo etc.

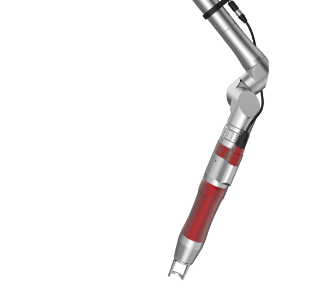

650nm Ruby

Option

Rosacea, Fine Blood Vessel, Green Tattoo etc.

Feature

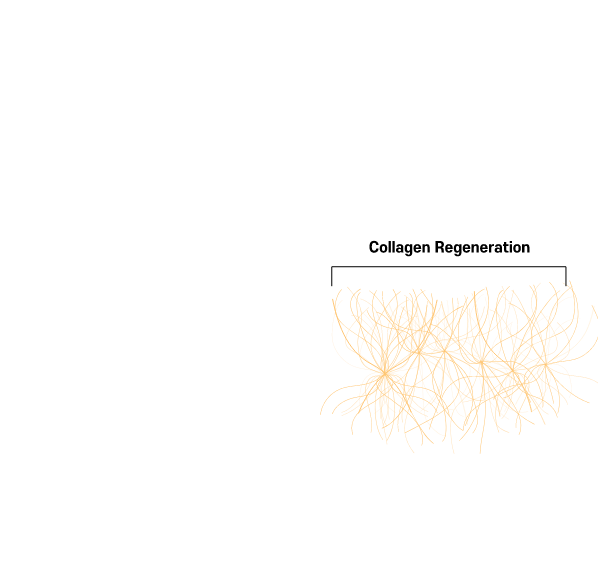

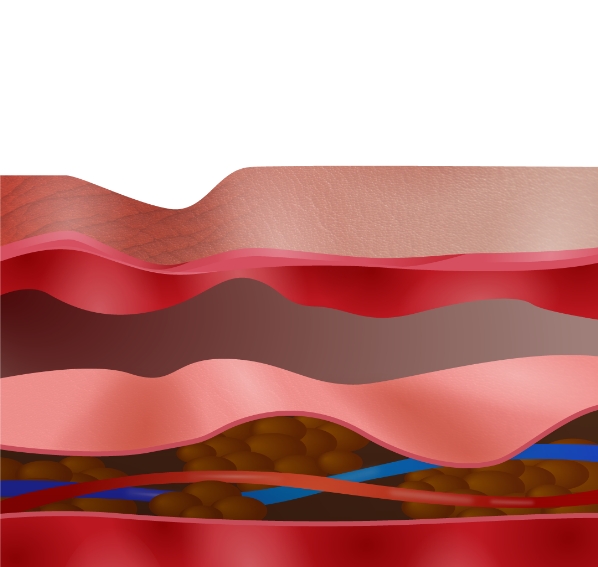

Long Pulsed Genesis Technique

is the method to activate the Fibroblast of Papillary Dermis

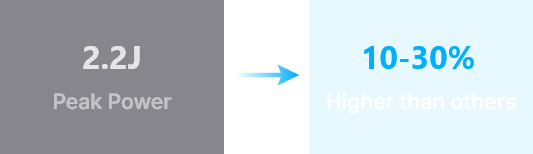

High Power of PDP Mode

Gently and powerfully treats
dermis pigments lessen epidermal damage.

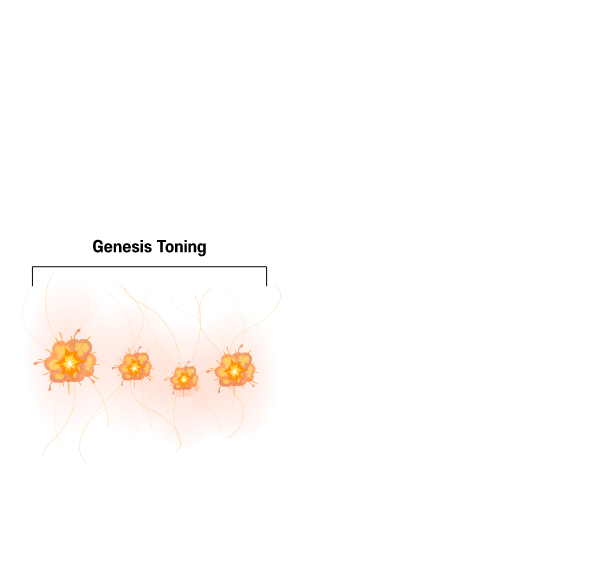

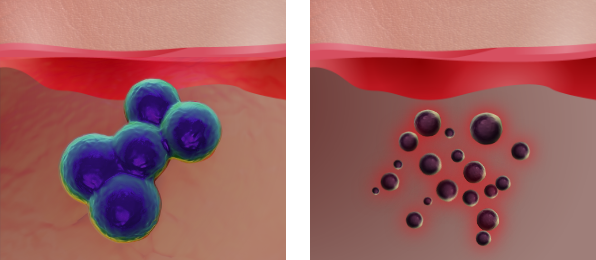

The high power can generate a photoacoustic effect
enough to break melanin and tattoo ink in the dermis

Breaking Tattoo Ink in the dermis

Realize LIOB adopting
MLA

MLA handpiece for optimal skin rejuvenation

Clinically Proven LIOB Effect for Skin Rejuvenation

(Acne Scar, Pore Tightening, Skin Laxity, Fine Wrinkle etc.)

100x

200x

400x

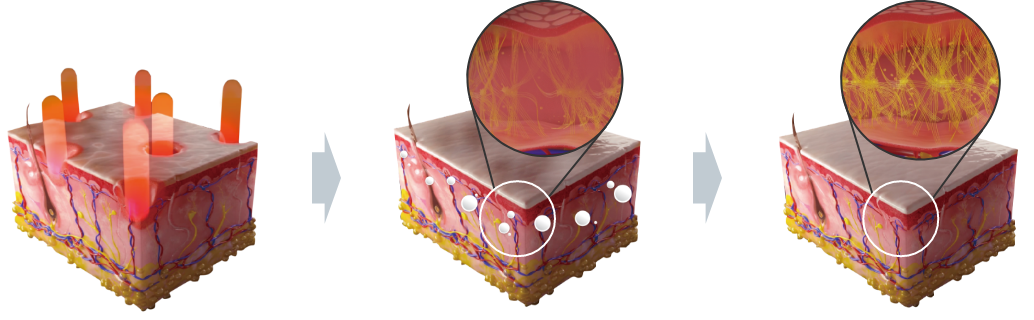

LIOB

Laser Induced Optical Breakdown

LIOB Mechanism

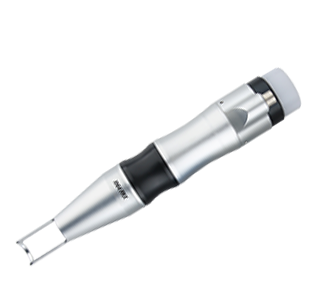

MLA

Micro Lens Array

Gaussian Beam

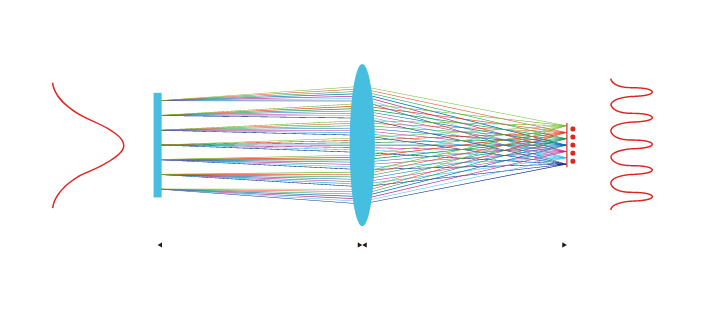

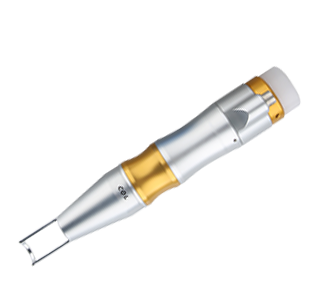

DOE

Diffractive Optic Element

Realize the ultimate safe and effectiveness of Pigmented lesions.

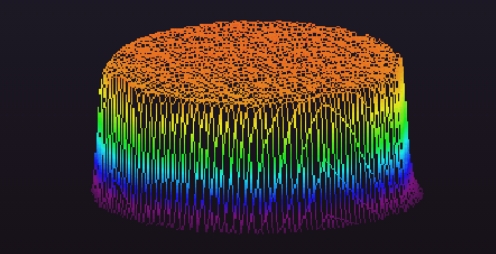

Having top-hat beam profile and emits a uniform fractional beam
can give predictable results for removing pigmentation.

It minimizes side effects and downtime.

Flat-top Beam

Indication

QSW

Q-Switched

Melasma & PIH improvement, nevus of ota & ABNOM removal, soft peeling, tattoo removal, freckle, lentigines, café -au-lait spot, becker’s nevus, age spot Improvement etc.

LPS

Long-Pulsed

Genesis, skin tightening & lifting, acne erythema Improvement, telangiectasia, hair removal, Gold PTT etc.

Before & After

QSW

Tattoo Removal

Photos courtesy by Karmalite Medical Esthetic, Jordan

Pore & Scar

Melasma & Flush

Photos courtesy of Y.H Hwang MD

LPS

Gold PTT Acne

Telangiectasia

Photos courtesy by Karmalite Medical Esthetic, Jordan

Hair Removal

Photos courtesy of Y.H Hwang MD

Treatment Video

Gold PTT
Genesis Toning
Hair Removal

Product Specification

System Q-Switched and Long-Pulsed Nd:YAG Laser
Mode QSW (Q-Switched), LPS (Long-Pulsed)
Energy
  • 1064 Q Single: 100 ~ 1600 mJ
  • 1064 Q Double: 500 ~ 2200 mJ
  • 532 Q Single: 20 ~ 500 mJ
  • 1064 Quasi-Long: 100 ~ 3500 mJ
  • 1064 Long: 1 ~ 60 J
Pulse Frequency 1 ~ 10 Hz
Pulse Duration
  • 1064 Single < 10ns
  • 532 Single < 10ns
  • Quasi < 350 µs
  • 1064 PDP < 50 ns
  • 1064 Long-Pulsed < 0.3 ~ 300 ms
Spot Size
  • Zoom Handpiece
    1064 nm: 2~10 mm / 532 nm: 1~7 mm
  • FRX Handpiece

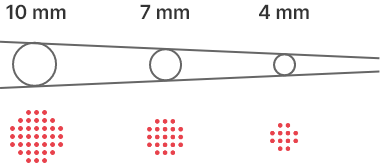

    Zoom MLA Handpiece: 4 mm, 7 mm, 10 mm DOE: 7×7 ㎡
User Interface 10.2 Inch
Electrical 110-120, 220-240VAC, 50/60Hz
Dimension 320(W) X 850(L) X 800(H) mm
Weight 85 kg
