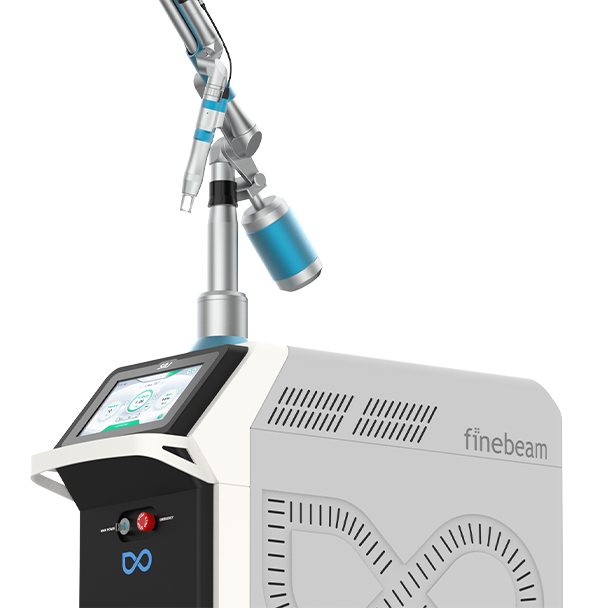

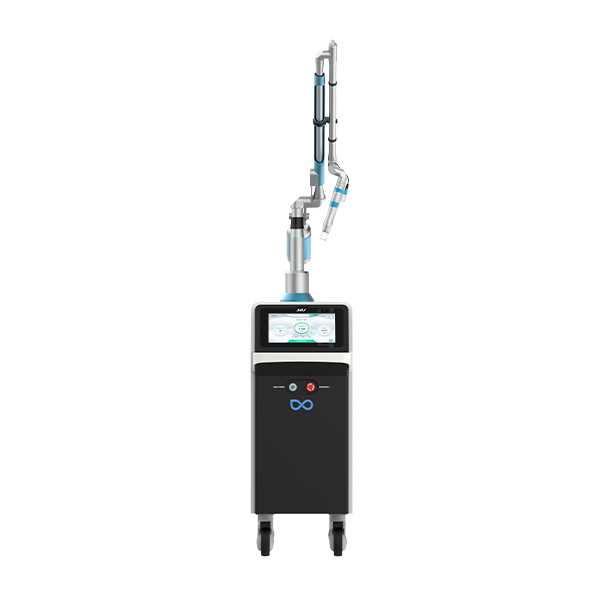

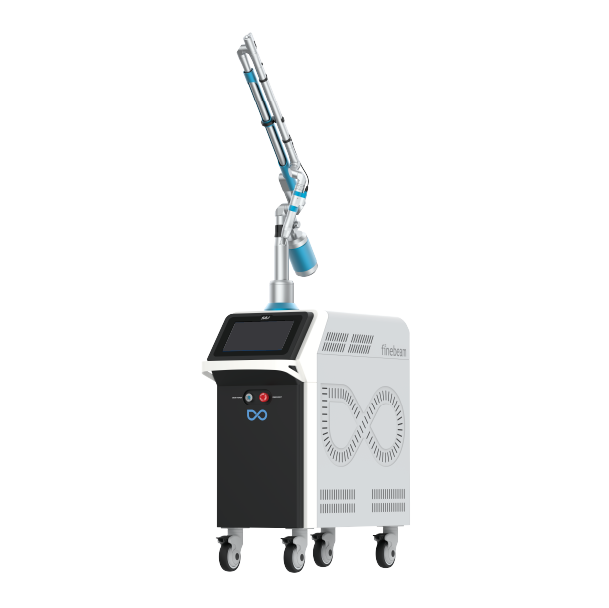

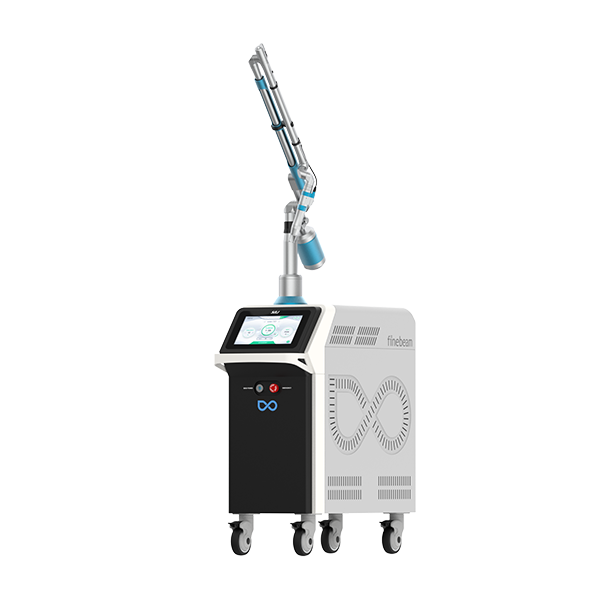

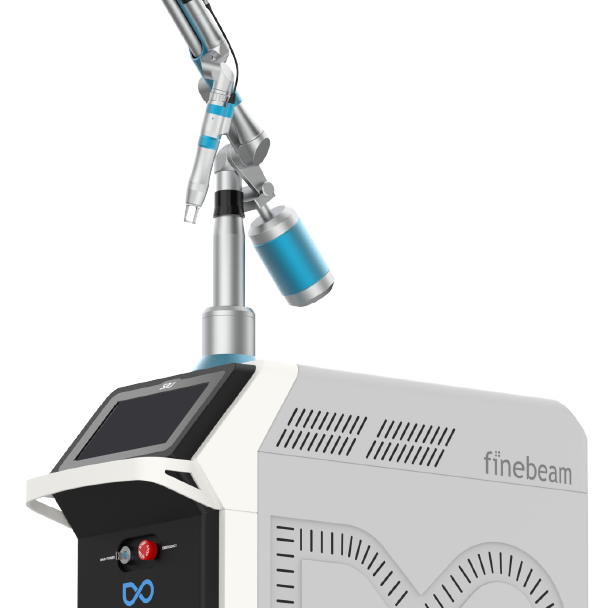

1064 · 532 Q-Switched Nd:YAG Laser

· Powerful MLA care for skin texture improving
· Stable Energy Delivery and high durability
· Exceptionally high power PTP for effective dermal melanin, tattoo ink breaking

Outstanding versatility of Q-Switched indications

Proven effectiveness of Zoom MLA for pore, scar,
and skin texture with high, stable max power of 1.3J for Qplus.

Catalog RequestProduct Video

Mode

1064 · 532 Q-Switched Nd:YAG Laser

Q-Switched

ZOOM Collimation

Basic

General indications

(Toning, Freckle, Age Spot, Carbon Peeling, Tattoo Removal, Hair Removal etc.)

ZOOM MLA

Fractional

Option

Elasticity related care for skin texture

(Acne Scar, Pore Tightening, Skin Laxity, Fine Wrinkle etc.)

DOE

Fractional

Option

Pigmentation lesions for dermis without side effect

(Seborrheic Dermatitis, Toning for thermal sensitive skin, Pigment easy rebound skin etc.)

595nm Gold

Fractional

Option

Vascular Melasma, Rosacea, Purple · Sky Blue Tattoo etc.

650nm Ruby

Option

Rosacea, Fine Blood Vessel, Green Tattoo etc.

Feature

Realize LIOB adopting
MLA

MLA handpiece for optimal skin rejuvenation

Clinically Proven LIOB Effect for Skin Rejuvenation

(Acne Scar, Pore Tightening, Skin Laxity, Fine Wrinkle etc.)

100x

200x

400x

LIOB

Laser Induced Optical Breakdown

LIOB Mechanism

MLA

Micro Lens Array

Gaussian Beam

DOE

Diffractive Optic Element

Realize the ultimate safe and effectiveness of Pigmented lesions.

Having top-hat beam profile and emits a uniform fractional beam
can give predictable results for removing pigmentation.

It minimizes side effects and downtime.

Flat-top Beam

Indication

QSW

Q-Switched

Melasma & PIH improvement, nevus of ota & ABNOM removal, soft peeling, tattoo removal, freckle, lentigines, café -au-lait spot, becker’s nevus, age spot Improvement etc.

Before & After

Freckle

Photos courtesy of Y.H Hwang MD

Pore & Scar

Melasma & PIH

Photos courtesy of Y.H Hwang MD

Keloid Erythema Removal

Photos courtesy of Sayam Qureshi MD, India

Tattoo Removal

Photos courtesy of Santosh Shinde MD, India

Black Head Clearance

Photos courtesy by Skinbliss Clinic, India

Treatment Video

Tattoo Removal
Carbon Peeling
Pigmentation Care

Product Specification

System Q-Switched Nd:YAG Laser
Mode QSW (Q-Switched)
Energy
  • 1064 Q Single: 100 ~ 1300 mJ
  • 1064 Q Double: 500 ~ 2000 mJ
  • 532 Q Single: 20 ~ 500 mJ
  • 1064 Quasi-Long: 100 ~ 3000 mJ
Pulse Frequency 1 ~ 10 Hz
Pulse Duration
  • 1064 Single < 10ns
  • 532 Single < 10ns
  • Quasi < 350 µs
  • 1064 PDP < 50 ns
Spot Size
  • Zoom Handpiece
    1064 nm: 2~10 mm / 532 nm: 1~7 mm
  • FRX Handpiece
    General: 5×5 ㎡ / DOE: 7×7 ㎡
  • Collimator Handpiece: 8 mm
  • Zoom MLA Handpiece: 4 mm, 7 mm, 10 mm
User Interface 10.2 Inch
Electrical 110-120, 220-240VAC, 50/60Hz
Dimension 320(W) X 850(L) X 800(H) mm
Weight 85 kg
